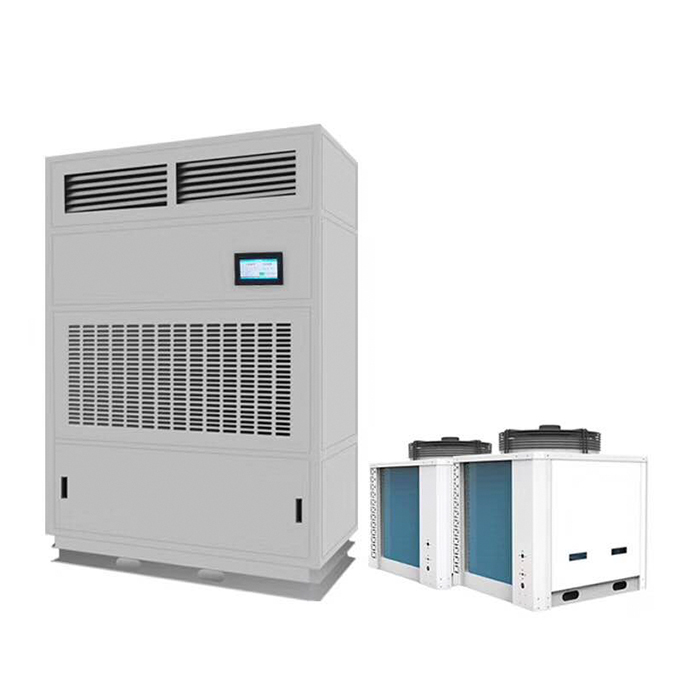

Temperature-controlled dehumidifier
Dongxin temperature-regulating dehumidification equipment series, the whole machine design has the characteristics of compact structure, safe operation, wide range of temperature control, high reliability, widely used in food processing, medical research, national defense engineering, precision machinery manufacturing and other fields, can achieve temperature control and dehumidification in different environments.
型号参数：
型号：TW-7H型号：TW-10H型号：TW-15H型号：TW-20H型号：TW-25H型号：TW-30H型号：TW-40H
除湿量：7kg/h-40kg/h
适用面积：
全国免费服务热线：13732203856
型号参数
Parameter name
System of cold quantity
Maximum dehumidification
Refrigeration power
Heating power
Electrical source
Circulating air volume
Closed to static pressure
Unit noise
Compressor (type)
Compressor (refrigerant)
Compressor (filling capacity)
Throttling way
Evaporator form
Condenser form
Diameter of condensate pipe
Indoor fan (type)
Indoor fan (power)
Indoor engine (long)
Indoor machine (width)
Indoor engine (height)
Outdoor fan (type)
Outdoor fans (power * quantity)
Outdoor unit (long)
Outdoor unit (width)
Outdoor unit (high)
Internal and external machine connection pipes (number of liquid pipes *)
Internal and external machine connection pipes (number of air pipes *)
Internal and external machine connection pipe (connection mode)
Temperature range
Humidity range
TW-7H
8.2kw
7kg/h
2.58kw
6kw
3P~50Hz AC380v/220v±10%
－
50～80Pa
≤65dBA
Fully enclosed rotary/eddy type
R22/407c
1.15kg*1
capillary
Copper tube cover hydrophilic aluminum fins
Copper tube with light foil aluminum fin
DN25mm
Low noise centrifugal fan
0.28kw
695mm
405mm
1705mm
Low noise external rotor axial fan
0.18kw
740mm
635mm
795mm
Φ9.52
Φ15.88
Bell mouth connection
5～60℃
6%-98%
TW-10H
11.9kw
10kg/h
3kw
9kw
3P~50Hz AC380v/220v±10%
－
50～80Pa
≤65dBA
Fully enclosed rotary/eddy type
R22/407c
1.3kg*1
capillary
Copper tube cover hydrophilic aluminum fins
Copper tube with light foil aluminum fin
DN25mm
Low noise centrifugal fan
0.28kw
870mm
465mm
1805mm
Low noise external rotor axial fan
0.42kw
740mm
740mm
948mm
Φ12.7
Φ15.88
Bell mouth connection
5～60℃
6%-98%
TW-15H
19.6kw
15kg/h
6.5kw
12kw
3P~50Hz AC380v/220v±10%
－
150Pa
62dB
Fully enclosed rotary/eddy type
R22/407c
2.9kg*2
capillary
Copper tube cover hydrophilic aluminum fins
Copper tube with light foil aluminum fin
DN25mm
Low noise centrifugal fan
0.6kw
1250mm
550mm
1850(2150)mm
Low noise external rotor axial fan
0.75kw
1350mm
600mm
1450mm
Φ12.70
Φ19.05
Bell mouth connection
5～60℃
6%-98%
TW-20H
23.8kw
20kg/h
9.8kw
15kw
3P~50Hz AC380v/220v±10%
－
150Pa
65dB
Fully enclosed rotary/eddy type
R22/407c
2.9kg*2
capillary
Copper tube cover hydrophilic aluminum fins
Copper tube with light foil aluminum fin
DN25mm
Low noise centrifugal fan
0.8kw
1250mm
550mm
1850(2150)mm
Low noise external rotor axial fan
0.55kw*2
1350mm
600mm
1450mm
Φ12.70×2
Φ19.05×2
Bell mouth connection
5～60℃
6%-98%
TW-25H
33.5kw
25kg/h
13.06kw
18kw
3P~50Hz AC380v/220v±10%
－
180Pa
66dB
Fully enclosed rotary/eddy type
R22/407c
4.75kg*2
capillary
Copper tube cover hydrophilic aluminum fins
Copper tube with light foil aluminum fin
DN25mm
Low noise centrifugal fan
1kw
1550mm
650mm
1850(2150)mm
Low noise external rotor axial fan
0.55kw*2
1550mm
600mm
1450mm
Φ12.70×2
Φ19.05×2
Bell mouth connection
5～60℃
6%-98%
Parameter name
System of cold quantity
Maximum dehumidification
Refrigeration power
Heating power
Electrical source
Circulating air volume
Closed to static pressure
Unit noise
Compressor (type)
Compressor (refrigerant)
Compressor (filling capacity)
Throttling way
Evaporator form
Condenser form
Diameter of condensate pipe
Indoor fan (type)
Indoor fan (power)
Indoor engine (long)
Indoor machine (width)
Indoor engine (height)
Outdoor fan (type)
Outdoor fans (power * quantity)
Outdoor unit (long)
Outdoor unit (width)
Outdoor unit (high)
Internal and external machine connection pipes (number of liquid pipes *)
Internal and external machine connection pipes (number of air pipes *)
Internal and external machine connection pipe (connection mode)
Temperature range
Humidity range
TW-30H
42kw
30kg/h
17.3kw
21kw
3P~50Hz AC380v/220v±10%
－
200Pa
66dB
Fully enclosed rotary/eddy type
R22/407c
3.85kg*3
capillary
Copper tube cover hydrophilic aluminum fins
Copper tube with light foil aluminum fin
DN25mm
Low noise centrifugal fan
1.3kw
1900mm
900mm
1950(2250)mm
Low noise external rotor axial fan
0.45kw*3
2350mm
600mm
1450mm
Φ12.70×3
Φ19.05×3
Bell mouth connection
5～60℃
6%-98%
TW-40H
54kw
40kg/h
22.5kw
21kw
3P~50Hz AC380v/220v±10%
－
200Pa
66dB
Fully enclosed rotary/eddy type
R22/407c
7.6kg*2
capillary
Copper tube cover hydrophilic aluminum fins
Copper tube with light foil aluminum fin
DN25mm
Low noise centrifugal fan
1.7kw
1900mm
900mm
1950(2250)mm
Low noise external rotor axial fan
1.1kw*2
2000mm
1000mm
1600mm
Φ15.88×2
Φ25.88×2
Bell mouth connection
5～60℃
6%-98%
① The above measured values are measured under the standard condition of connection pipe length of 5m; In different outdoor wet bulb temperature and indoor dry bulb temperature, the actual cooling heat production needs to be multiplied by the nominal cooling heat production coefficient to modify;
the above parameters are for reference only. The manufacturer reserves the right to change the data of the unit for performance optimization and system upgrade, etc. The factory nameplate of the product shall prevail without prior notice.
产品详情
功能特点
It can realize four modes of dehumidification: temperature-regulating dehumidification, temperature-raising dehumidification, temperature-lowering dehumidification and heating
1. Novel design, strong structure, high strength cold-rolled steel plate
2, intelligent automatic control, special humidity 1% adjustable function, humidity 6%-98% adjustable range
3. Special temperature adjustment function, temperature adjustment range is from 5℃ to 60℃
4. Special 1-24 hour shutdown function
5, simple operation, convenient, clear, with temperature and humidity display screen
6. It has the system high voltage and low voltage protection function to ensure the stable operation of the equipment
7. High efficiency automatic frost function, suitable for low temperature
8. Automatic fault detection and code prompt
9. RS485 interface is optional to realize remote monitoring and control functions
工艺特色
Adopt international brand compressor, internal thread copper tube, open window heat exchanger, dehumidification effect is better
Adopt schneider and other international famous brand electrical components
SPCC is used to spray anticorrosive steel plate to prolong the product life
High efficiency centrifugal fan with u-shaped wind channel, strong wind, low running noise
Factory standard outdoor connection copper pipe, more convenient installation
应用说明
Dongxin temperature-regulating dehumidification equipment series, the whole machine design has the characteristics of compact structure, safe operation, wide range of temperature control, high reliability, widely used in food processing, medical research, national defense engineering, precision machinery manufacturing and other fields, can achieve temperature control and dehumidification in different environments.
